Midland, TX

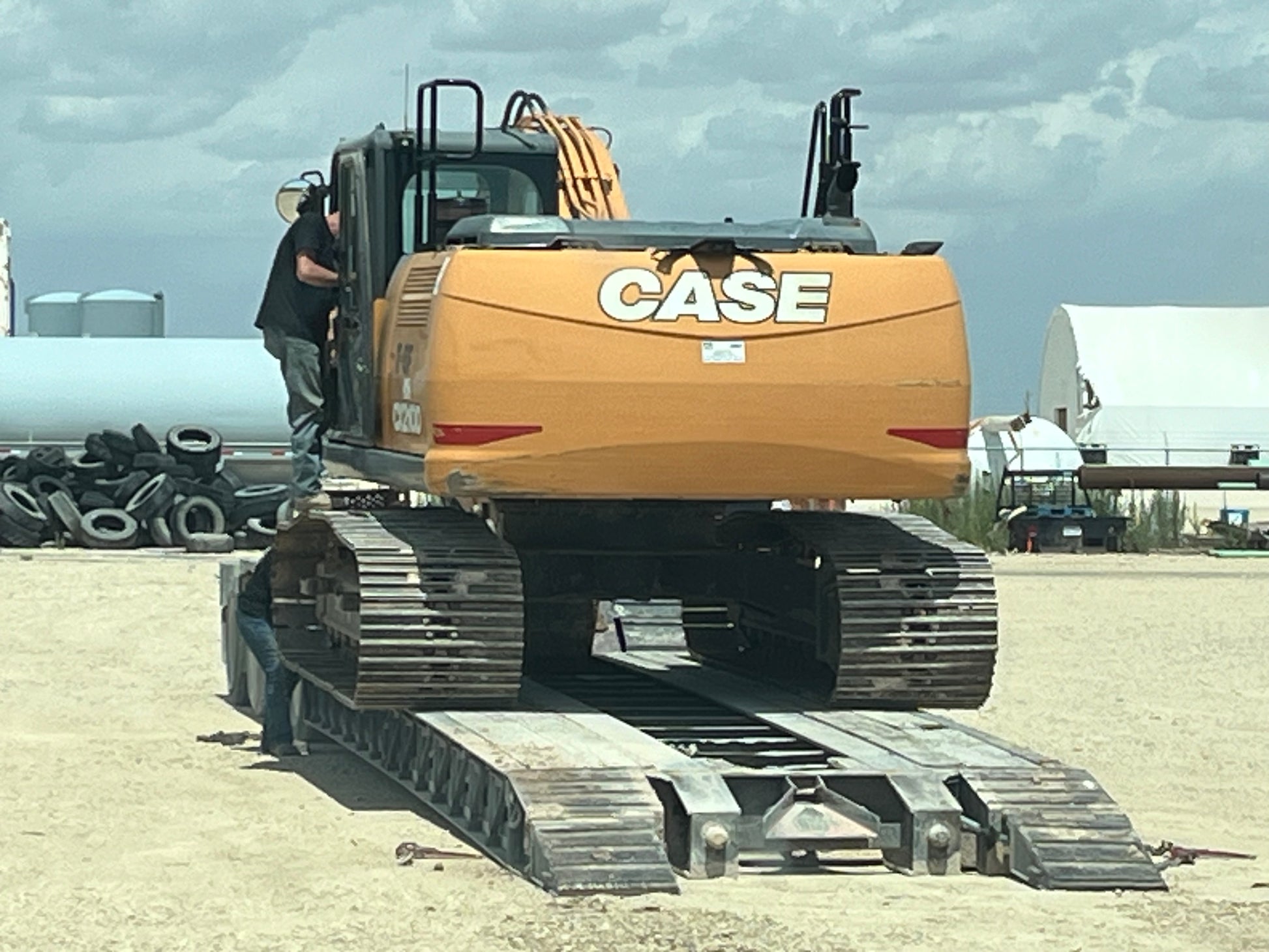

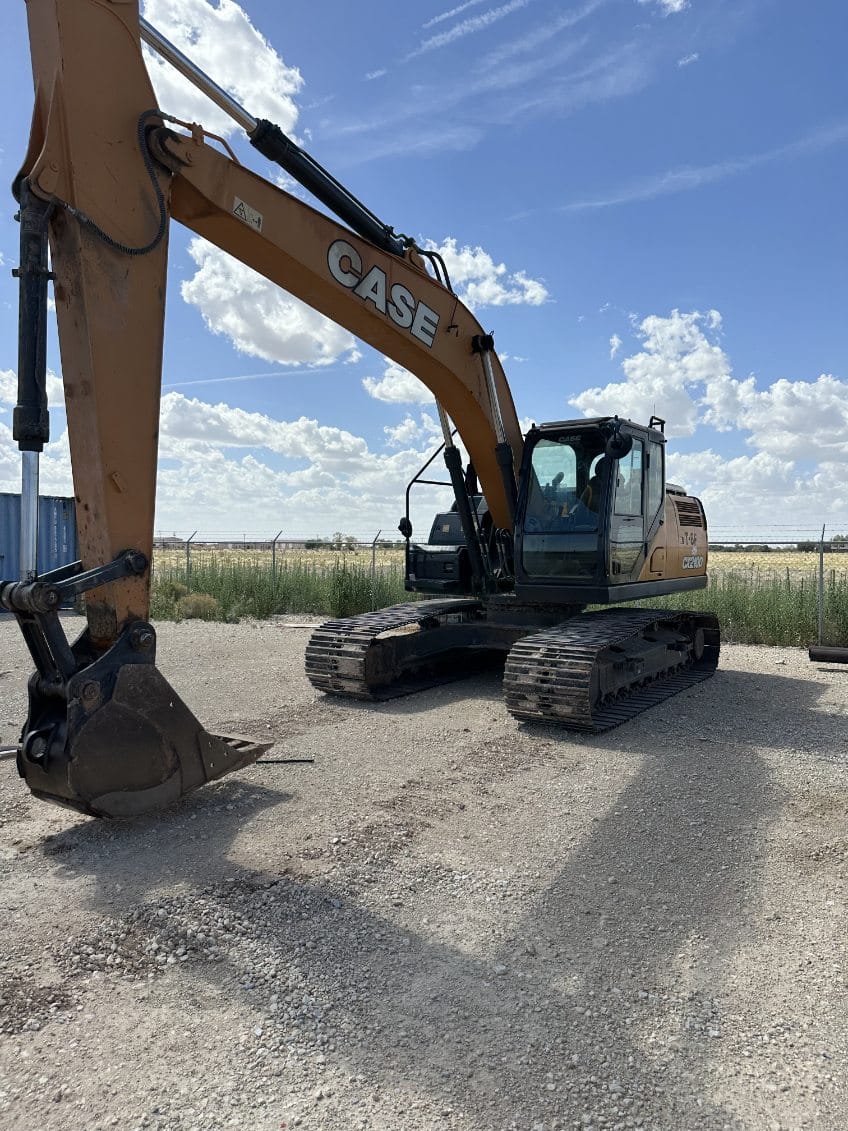

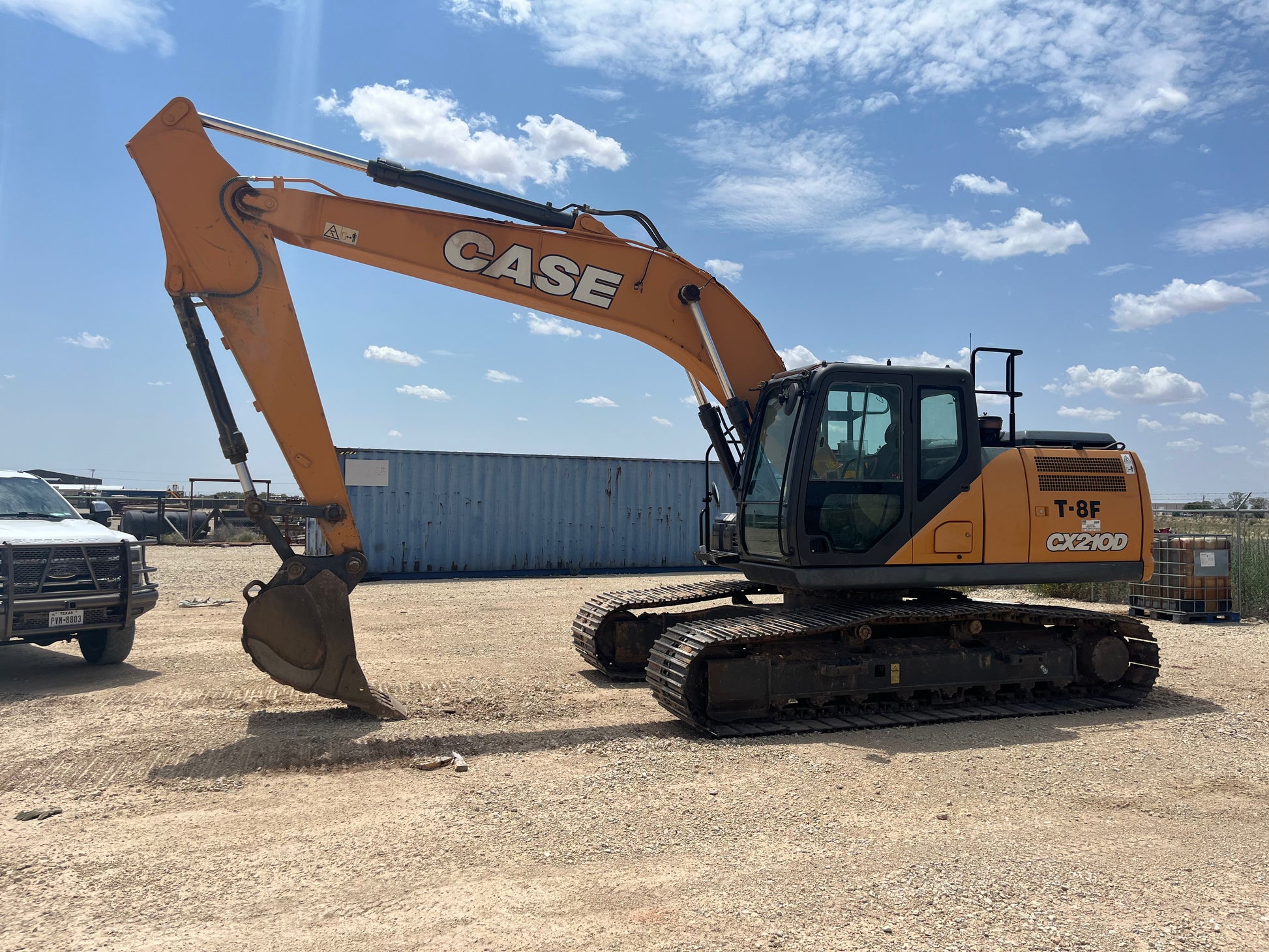

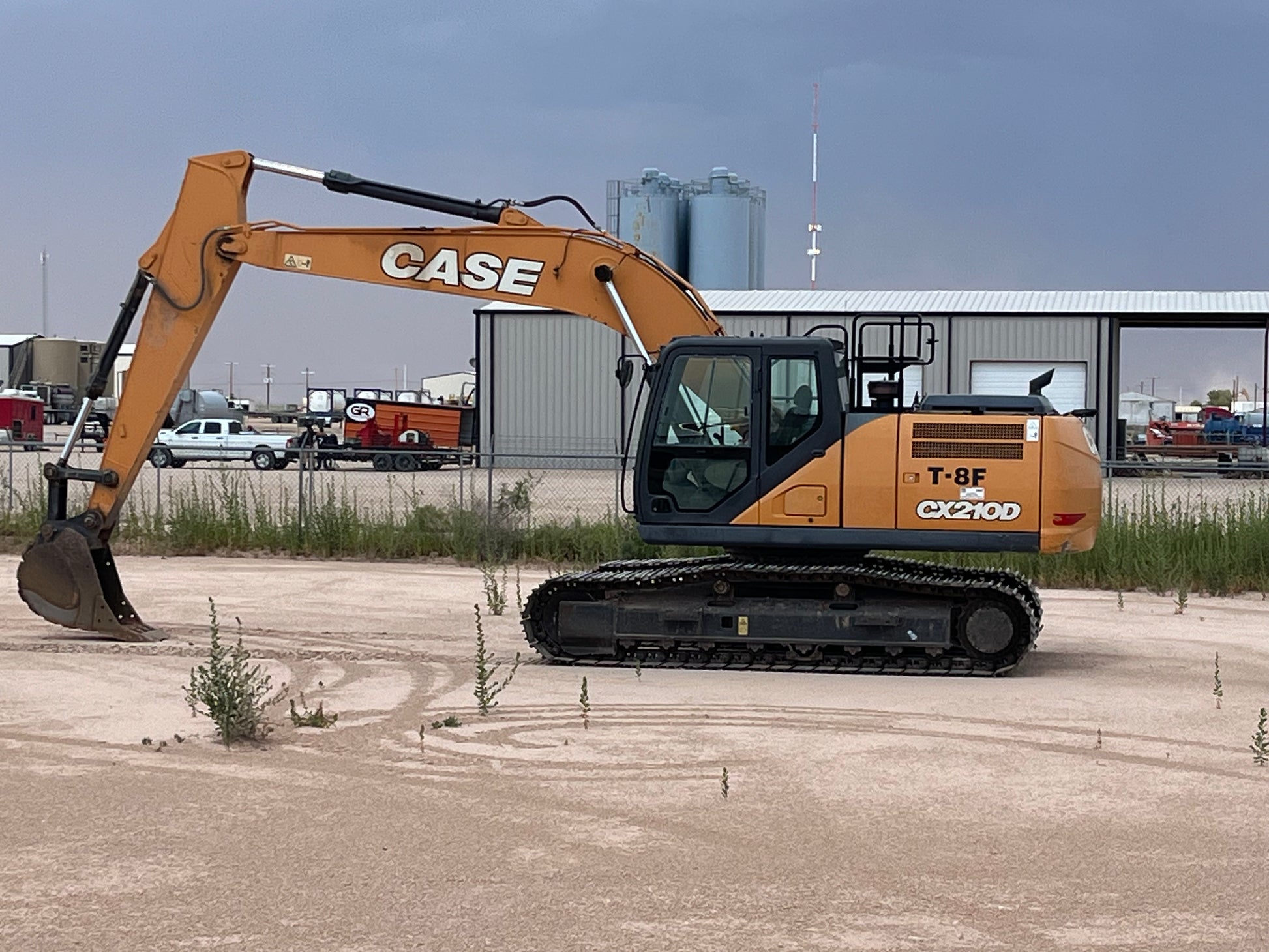

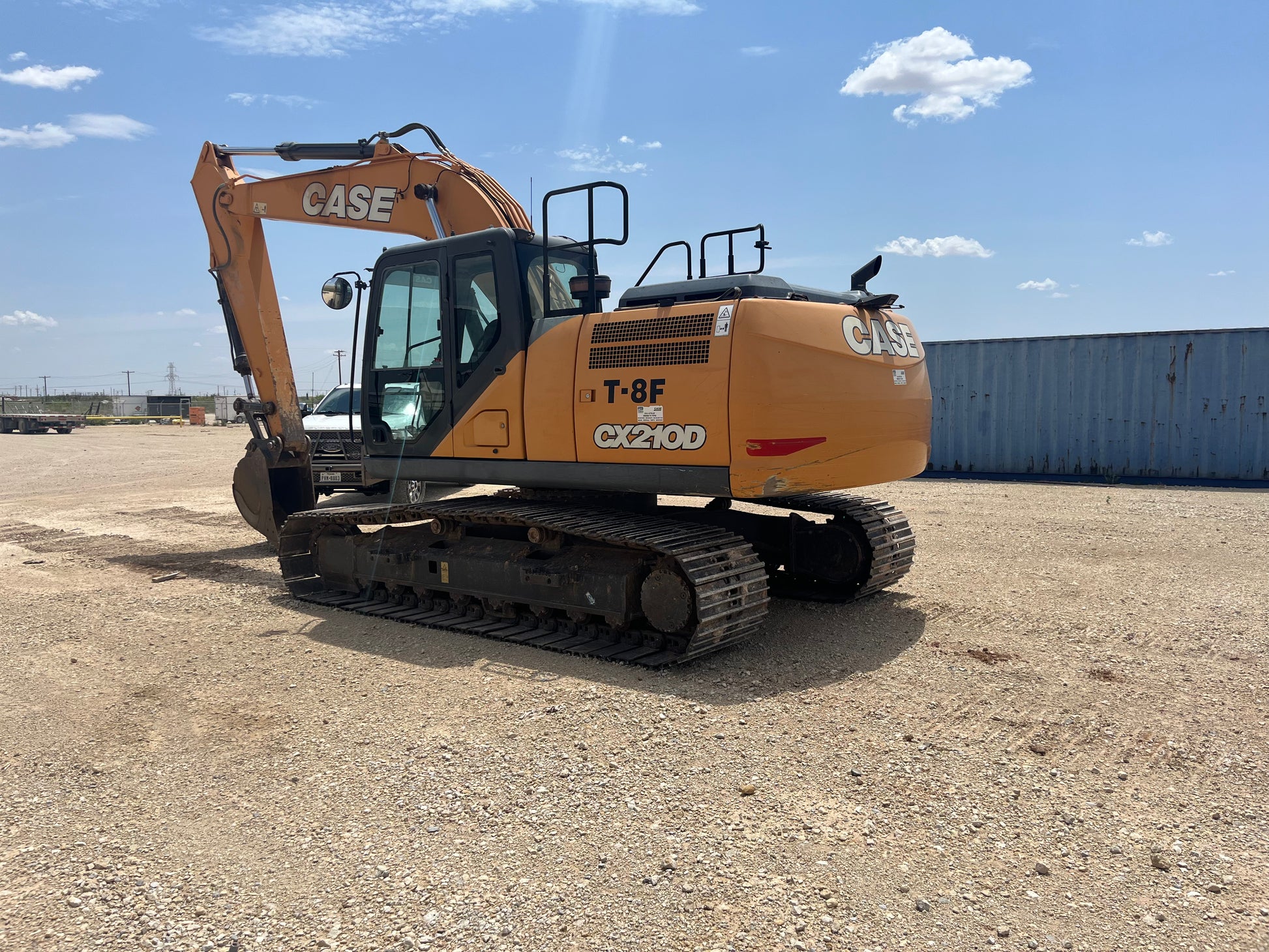

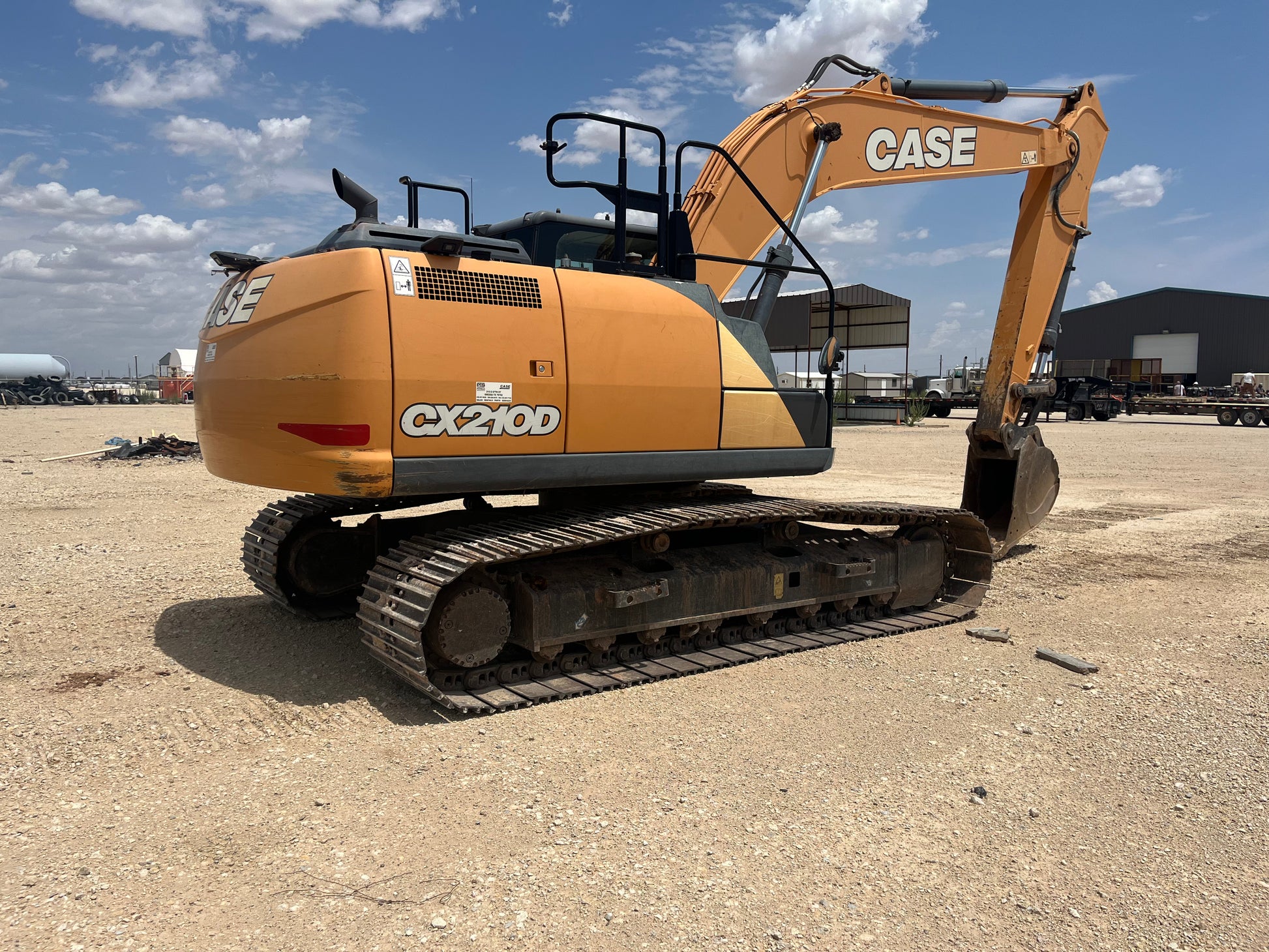

2018 CX210D Case Track Hoe Excavator
2018 CX210D Case Track Hoe Excavator
Regular price
$85,000.00 USD
Regular price
Sale price
$85,000.00 USD
Unit price
per
Couldn't load pickup availability
Year: 2018
Hours: 2300
Max Digging Depth
21.82ft in
Max Digging Reach On Ground
31.93ft in
Max.Dumping Height
22.35ft in
Dimensions
Ground Clearance
1.45ft in
Tail Swing Radius
9.16ft in
Overall Height
9.85ft in
Track Shoe Width
2.63ft in
Cab Height
118.12in
Center To Center – Idler To Sprocket
12.01ft in
Ground Pressure
4.91psi
Minimum Ground Clearance
109.06in
Boom Length
18.8ft in

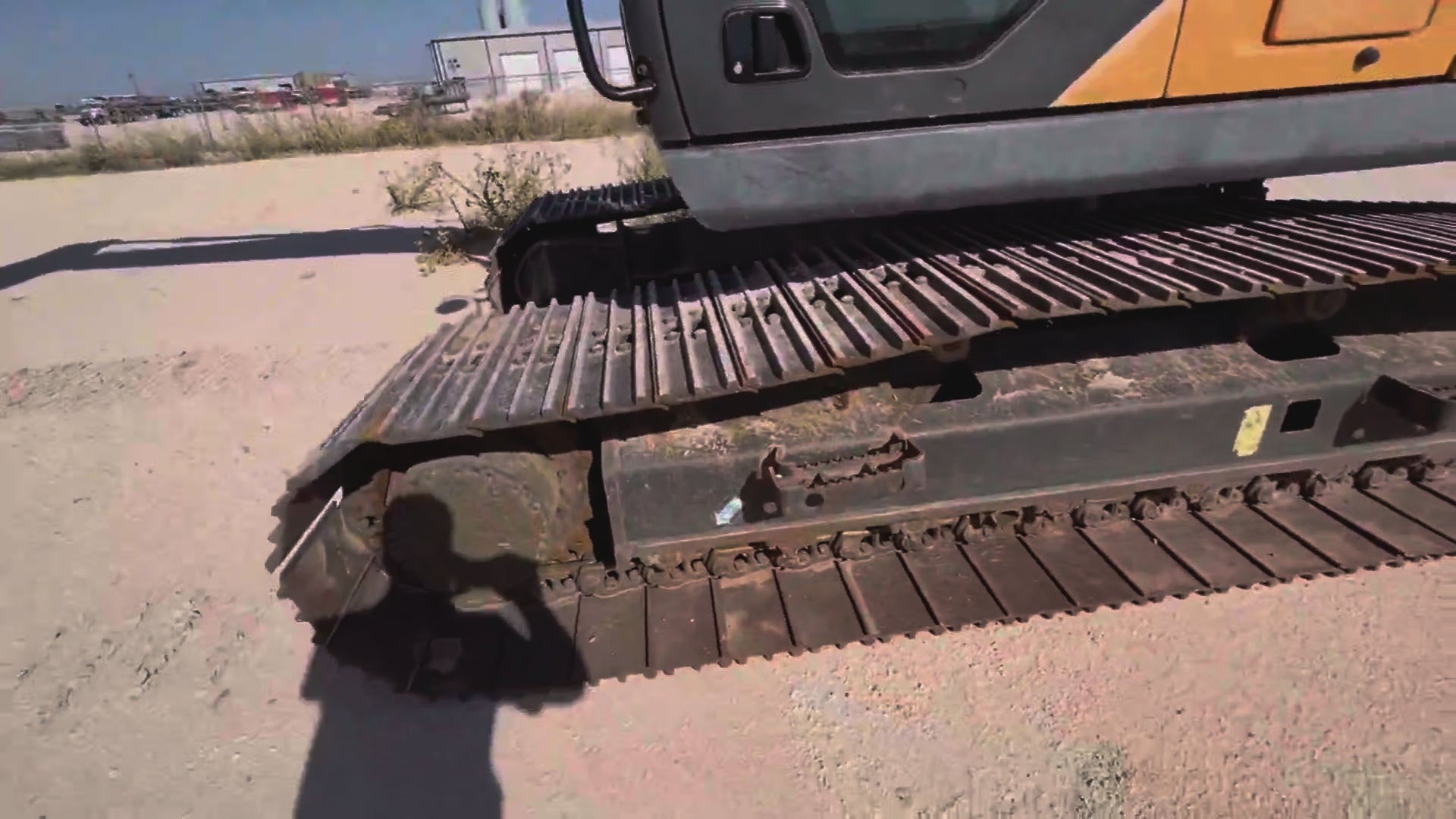

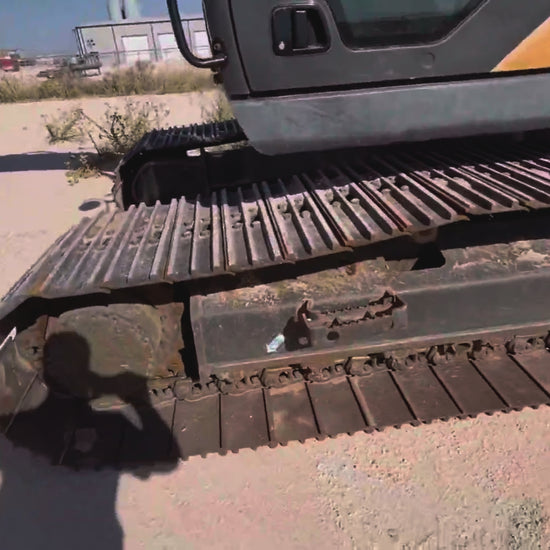

Undercarriage
Track Shoe Width
31.5in
Specifications
Engine
Emission Tier Level
Tier 4
Fuel Injection
Direct injection – electronic
Fuel Filter
Replaceable, full flow spin-on cartridge
Air Filter Type
Dry type element with warning restriction indicator
Number Of Cylinders
4
Engine Model
Isuzu 4 HKIX
Net Power
160hp
Power Measured @
1800rpm
Max Torque
458.1lb ft
Displacement
317.4cu in
Fuel Type
Requires ultra-low sulfur fuel B5 biodiesel tolerant
Bore
4.6in
Stroke
5in
Oil Filter
Replaceable, full flow spin-on cartridge
Capacities
Engine Oil W/ Filter Change
6.2gal
Swing Drive
1.4gal
Hydraulic Tank
38.9gal
Cooling System
8.3gal
Final Drive
1.4gal
Hydraulic System
66.1gal
Operational
Arm Breakout Force
25178.6lb
Operating Weight
48973.5lb
Arm Size
32.2ft in
Performance
Lift Over End 10\' Radius - Lbs (Kg)
18364.6lb
Lift Over End Max. Reach
5732.1lb
Lift Over Side 10\' Radius
18364.6lb
Lift Over Side Max. Reach
4894.3lb
Swing Mechanism
Swing Speed
11.5rpm
Transmission
Max Speed
3.5mph
Hydraulic System
Main Pump - Maximum Flow
111.5gal/min
System Relief Pressure
4975psi
Brakes
Brakes Type
Mechanical disc
Service Brake
SAHR disc – each motor
Travel Control
Dual stage relief or counter balance design
